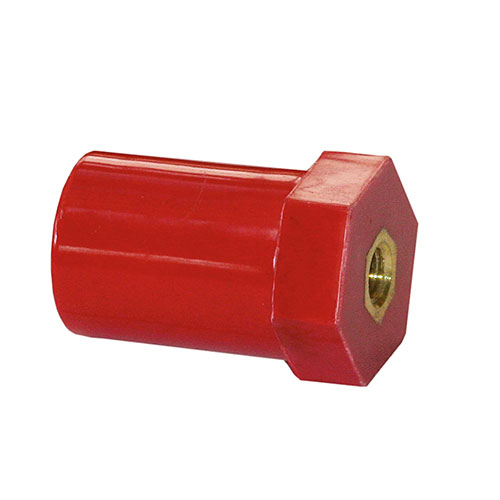

Insulators – Serie IC

You could find the technical values and dimensions of Insulators series IC in the table below

color: RAL3002 red

material: glass reinforced polyester

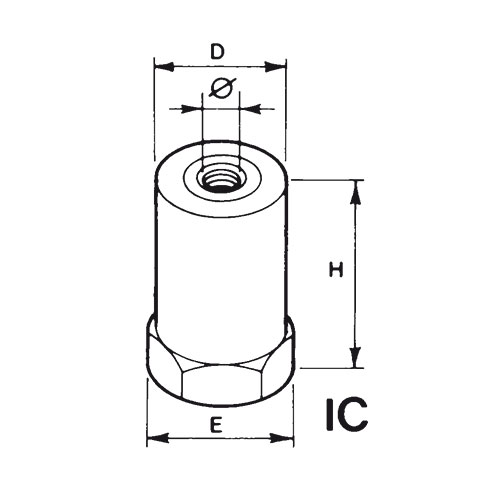

technical values and dimensions

Type dimension in mm Tensil breaking       N Torque breaking     NMtr. Cantilever breaking    N Operating Voltage Unit / pcs
H E D  (SW)
IC20/20-6 20 20 20 4000 10 1250 600 V 100
IC20/25-6 25 20 20 3500 10 1250 600 V 100
IC20/30-6 30 20 20 4500 15 1250 600 V 100
IC20/30-8 30 20 20 4000 10 1250 600 V 100
IC20/35-6 35 20 20 4500 15 1250 600 V 100
IC20/40-6 40 20 20 5500 20 1250 600 V 100
IC20/50-6 50 20 20 5500 20 1250 600 V 100
IC30/40-10 40 30 30 7000 20 2500 1000 V 100
IC30/60-10 60 30 30 7000 20 2500 1000 V 100
IC40/40-10 40 40 40 10000 50 5000 1000 V 100
IC50/100-10 100 50 50 12850 51 3000 8000 V 25
